We have units IN STOCK.
Call Tim at (704) 387-3316 for more information.

Price: $299,988.00

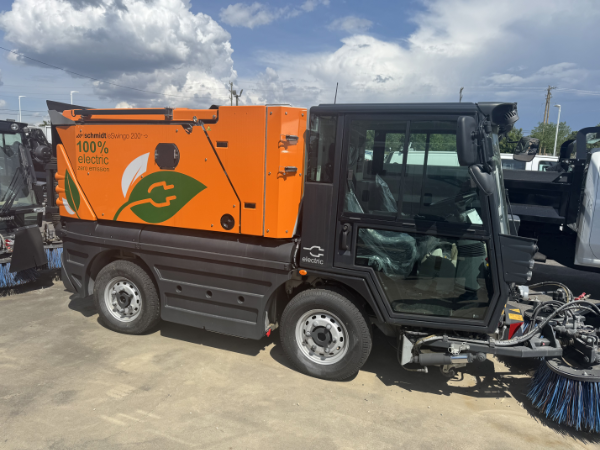

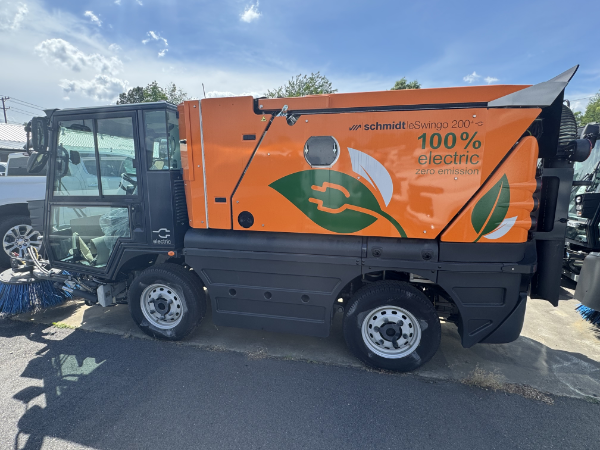

Schmidt eSwingo 200+ Sweeper

Highlights

The eSwingo 200+ is the first fully electric compact sweeper from Schmidt. It is ideal for daily cleaning and sweeping duties in neighborhoods and city areas plus industrial locations and parking lots. The eSwingo 200+ is not only one of the cleanest compact sweepers on the market, it also pays for itself in the overall whole life cost calculation. With the eSwingo 200+, up to 85% of energy costs and up to 70% of maintenance costs can be saved compared to a model with a diesel engine.

  • 100% electric, 0% carbon dioxide emissions
  • Working up to ten hours without recharging
  • Recharge in just 8 hours with on-board charger
  • Low noise emission
  • Sustainable and responsible technology

Your Benefits

  • Performance: High performance and driving performance even on demanding sweeping jobs - no compromises compared to the model with diesel engine.
  • Battery Life Cycle Management: Battery service and diagnosis are carried out by Aebi Schmidt, as well as free take-back and recycling.
  • Extremely quiet driving and working: The machine can also be used for work assignments at night or in the early morning hours.
  • Excellent sweeping performance: A 2- or 3-broom system is available with a pulled suction shaft. Thanks to modular equipment and a wide range of optional expansion options, the sweeper can be adapted to customer-specific requirements.

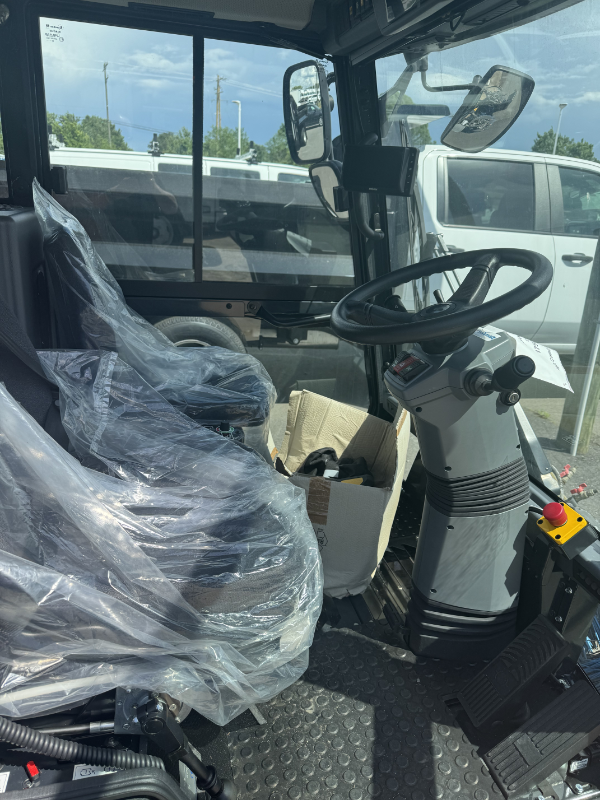

  • Unsurpassed comfort: A spacious cab, excellent visibility, ergonomic controls, an adjustable steering column and a sprung driver‘s seat with individual adjustment options. AGR (Campaign for Healthier Backs) tested and recommended.

Equipment

Hopper Tank Volume: 2.6yd3
Sweeping Width: 55-114 in
Total Water Volume: 105.7 gal
Fresh Water Pump: 43.5 psi/ 2.9 gal/min
Battery Total Capacity: 75Kwh / 400 V
Battery Operating Time Without
Recharging:		 10h
Battery Charging Time: 8h
Turning Circle Diameter Curb to Curb (2-Wheel Steering) 21.5 ft
Transport Speed: 15.5 mph / 25 mph / 28 mph / 31 mph
Sweeping Speed: 7.5 mph
